EXITEX - CAPEX 40/51 & CAPEX 60/71

We supply a selection of joining bars and fixings for use with our multi-wall polycarbonate sheet. Some can be used with glass. We use two manufacturers of quality fixings, Twinfix and Exitex.

CAPEX 40/51 - Ideal for capping 10mm multi-wall or glass glazing. The Aluminum cap (powder coated white or brown) is 40mm wide and when fixed to rafters increases to 51mm with the gaskets compressed. The bar is suitable for joining panels on the same plane of 180o. (2.4M, 3M & 4.8M)

 Rag45 - Black EPDM 45mm wide rafter gasket which when compressed is 52mm wide.

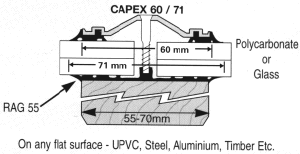

CAPEX 60/71 - Ideal for capping multi-wall or glass glazing. The Aluminum cap (powder coated white or brown) is 60mm wide and when fixed to rafters increases to 71mm with the gaskets compressed. The bar is suitable for joining panels on the same plane of 180o and can also accommodate a pitch of up to 10o up or down. (2.4M, 3M & 4.8M)

Rag55 - Black EPDM 55mm wide rafter gasket which when compressed is 62mm wide.

H/V Gasket - Hip & Valley Gasket

For Hips and valleys from 10o to 25o use Capex 60/71 with H&V Gasket



We also supply a unique range of products manufactured by Exitex which are ideal for constructing Victorian or Edwardian conservatories. They use the above rafter gasket systems and include ridge sections with finials and crests. The Capex system enables complicated jack rafters to be resolved simply with special moulded bridgings.

All information is given in good faith but without warranty
